| 型号 Modle | THS5 | THS10 | THS15 | THS20 | THS25 | THS30 | THS35 | THS40 |
| 标称电压 (V) Nominal Voltage | 102.4 | 204.8 | 307.2 | 409.6 | 512 | 614.4 | 716.8 | 819.2 |
| 额定容量 (Ah) Rated Capacity | 50 |
| 额定能量 (kWh) Rated Energy | 5.12 | 10.24 | 15.36 | 20.48 | 25.6 | 30.72 | 35.84 | 40.96 |
| 放电终止电压 (V) Discharging Cut-off Voltage | ≤92.8 | ≤185.6 | ≤278.4 | ≤371.2 | ≤464 | ≤556.8 | ≤649.6 | ≤742.4 |
| 最大充/放电电流 (A) Max. Charging/Discharing current | 50 |

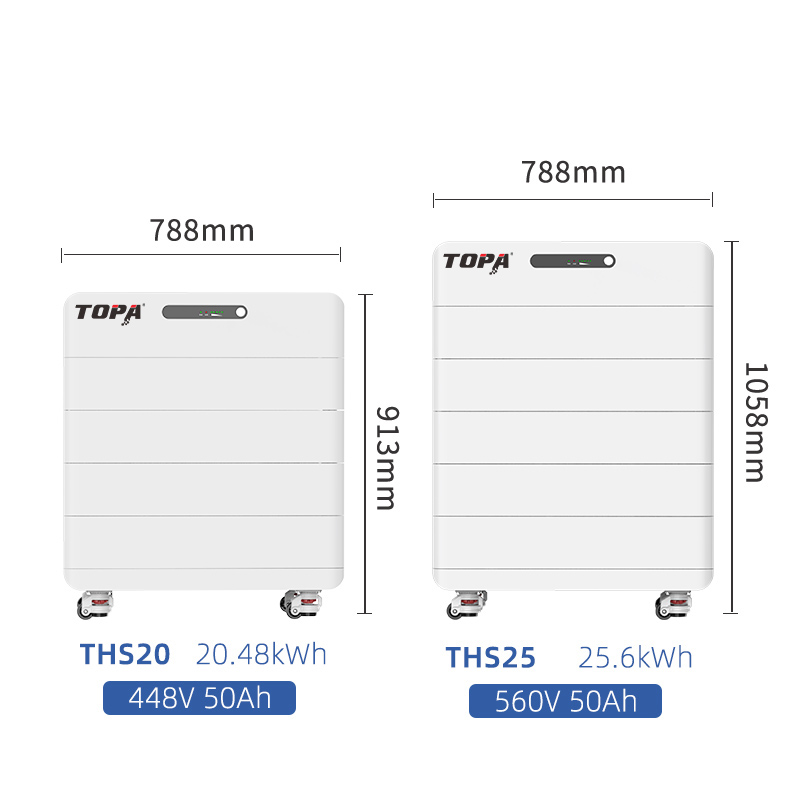

| 系统尺寸 (mm) Product Size | 788*388*474 | 788*388*621 | 788*388*768 | 788*388*913 | 788*388*1058 | 788*388*1203 | 788*388*1350 | 788*388*1497 |
| 系统重量 (kg) Product Weight | 75 | 125 | 175 | 225 | 275 | 325 | 375 | 425 |
电池往返效率 Round-trip Efficiency (0.2C, 25°C) | 95% |
| 预期寿命 (25°C) Life expectancy | 10年 |
| 循环寿命 Cycle Life | 6000次循环 (90%放电深度, 25°C) |
| 工作温度范围 Operating Temperature | 充电: 0~55°C；放电: -20~60°C |
| 储存温度 Storage Temperature | 3个月以内: -10~45°C (相对湿度 60±25%) |
6个月以内: -10~35°C (相对湿度 60±25%)
1年以上: 0~25°C |
|
| 防护等级 (IP) Protection Rating | IP20 |
| 防护类别 Protection type | I |
