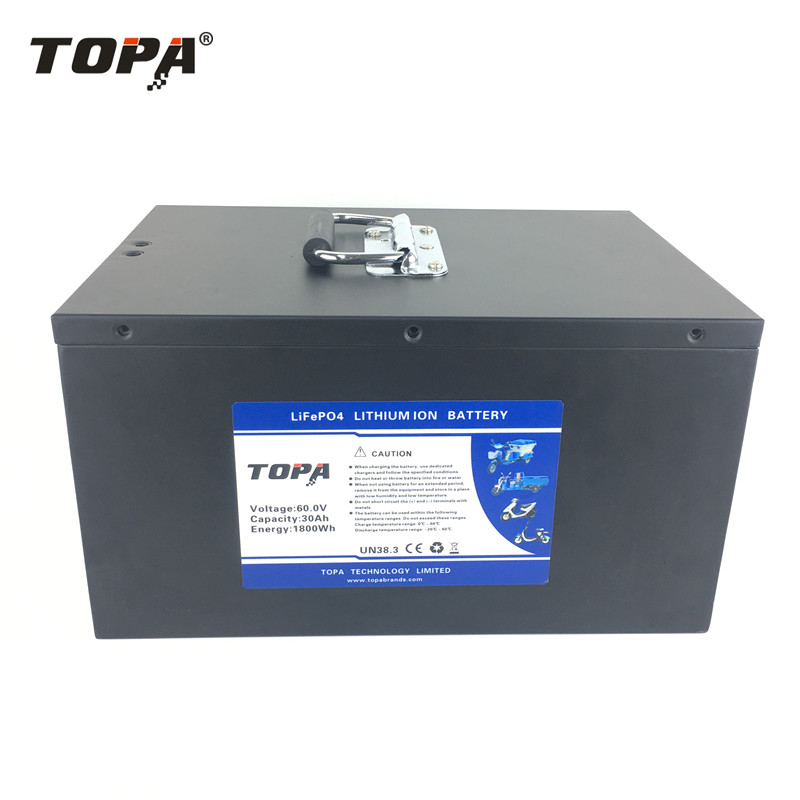

Product Feature:
● With modular structure, which can be flexibly composed of a variety of voltage platform, a variety of capacity level system, and easy maintenance.
● The design of battery management system provides the highest reliability.
● Using Lithium iron phosphate battery, which has high safety performance, long cycle life, with service life of more than 3 years.
● The shell is made of plate gold, which is fireproof and has strong collision protection.Screw design, waterproof glue around
Product Feature:
● With modular structure, which can be flexibly composed of a variety of voltage platform, a variety of capacity level system, and easy maintenance.
● The design of battery management system provides the highest reliability.
● Using Lithium iron phosphate battery, which has high safety performance, long cycle life, with service life of more than 3 years.
● The shell is made of plate gold, which is fireproof and has strong collision protection.Screw design, waterproof glue around
Battery Rack |
|
Norminal Voltage [VDC] |
64.0* |
Cell Type |
LFP |
Battery Box Configuration |
panel beating |
Voltage Range [VDC] |
50.0* ~ 73.0 |
Rated Discharge Current [A] |
30 |
Rated Charge Current [A] |
5 |
Norminal Total Energy [kWh] |
1500.0~2190 |
Battery Box |
|
Norminal Voltage [VDC] |
64.0 |
Voltage Range [VDC] |
50.0* ~ 73.0 |
Cell Type |
LFP |
Battery Box Configuration |
1P20S/2P20S |
Rated Discharge Current [A] |
30 |
Rated Charge Current [A] |
5 |
Norminal Total Energy [kWh] |
2190 |
Cell |
|
Norminal Voltage [VDC] |
3.2 |
Voltage Range [VDC] |
2.5~3.65 |
Cell Type |
LFP |
Norminal Capacity(Ah) |
30Ah/15Ah |
Rated Discharge Current [A] |
30 |
Rated Charge Current [A] |
5 |
Norminal Total Energy [kWh] |
96/48 |
Construction |
|
Installation Type |
Scaffolding installation |
Level of Protection (IP) |
IP65 |
Cooling Type |
Natural cooling |
Altitude [m] |
≤2000 |
Size (W*D*H) [mm] |
310*220*170mm
|
Weight [kg] |
15~17 |
